Material Construction

Backing Material: Skived PTFE Film

Adhesive Type: Silicone pressure-sensitive adhesive

Construction: Tensilized (stretched and calendared) PTFE film

Physical Properties

Substrate Thickness: 0.002 in

Adhesive Thickness: 0.002 in

Total Product Thickness: 0.004 in

Elongation: 150%

Adhesion Performance

Adhesive Strength: Typical: 25 oz/in

Minimum: 20 oz/in


Temperature Resistance

Operating Temperature Range: -100°F to +500°F

Product Format

Construction: Self-wound (no liner)

Shelf Life

12 months from date of manufacture when stored under recommended conditions.

Recommended Storage Conditions

Temperature: ~66°F – 80°F

Relative Humidity: ~50% ±10%

All data represents typical values based on testing and is intended for comparison purposes.

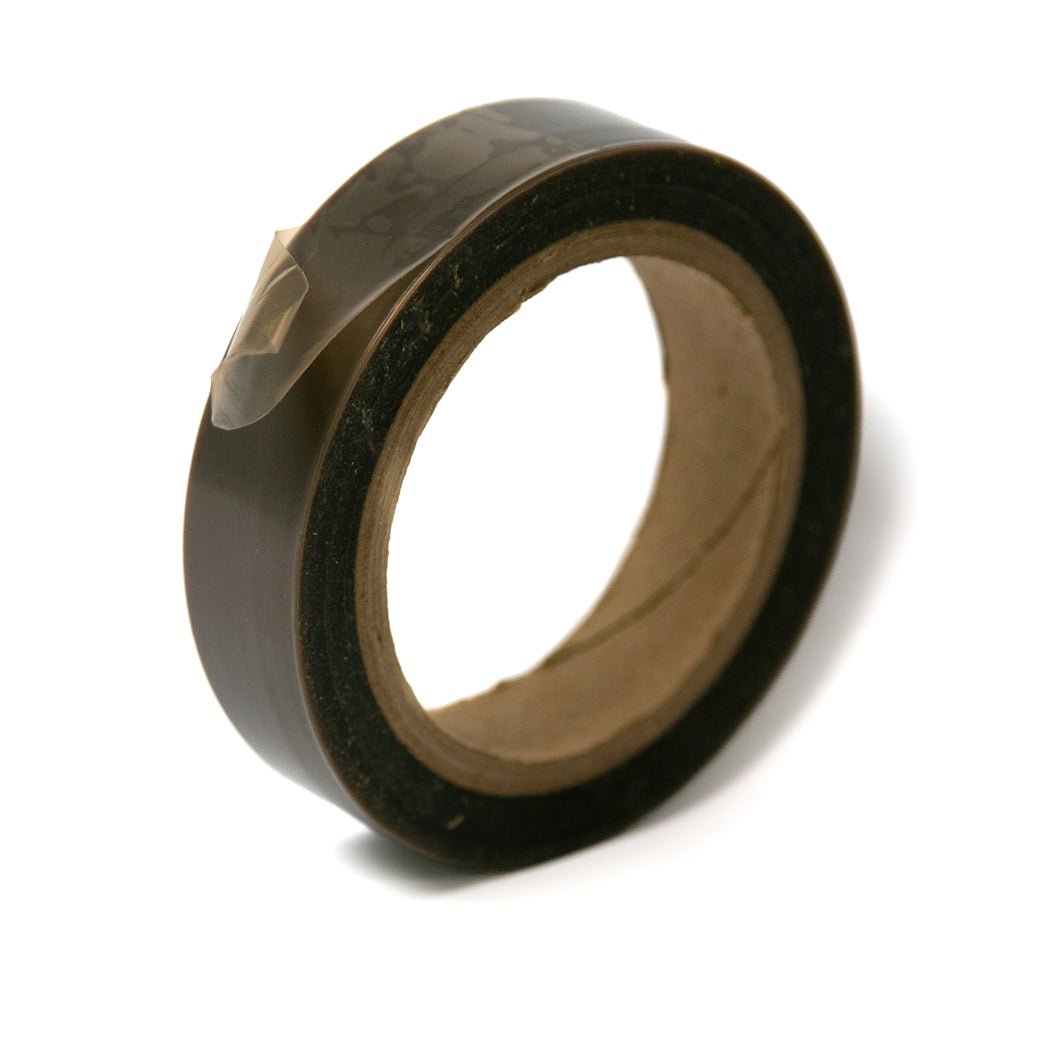

This skived PTFE tape is constructed from tensilized (stretched and calendared) PTFE film coated with a high-performance silicone adhesive. The result is a durable, high-temperature resistant tape with exceptional release properties and excellent electrical insulation.

The tensilized PTFE film provides consistent thickness, high dielectric strength, and reduced elongation, allowing the tape to maintain dimensional stability even under demanding industrial conditions.

With its outstanding non-stick surface and low friction characteristics, this tape performs exceptionally well in applications involving heat, mechanical wear, and electrical insulation.

Common applications include chill roller wrapping, electrical insulation, cable and wire harness protection, and wear-strip protection where reliable release and high temperature resistance are required.

Industries that commonly utilize PTFE tapes include aerospace, electronics manufacturing, packaging equipment, plastic processing, and composite molding operations.
