Specifications

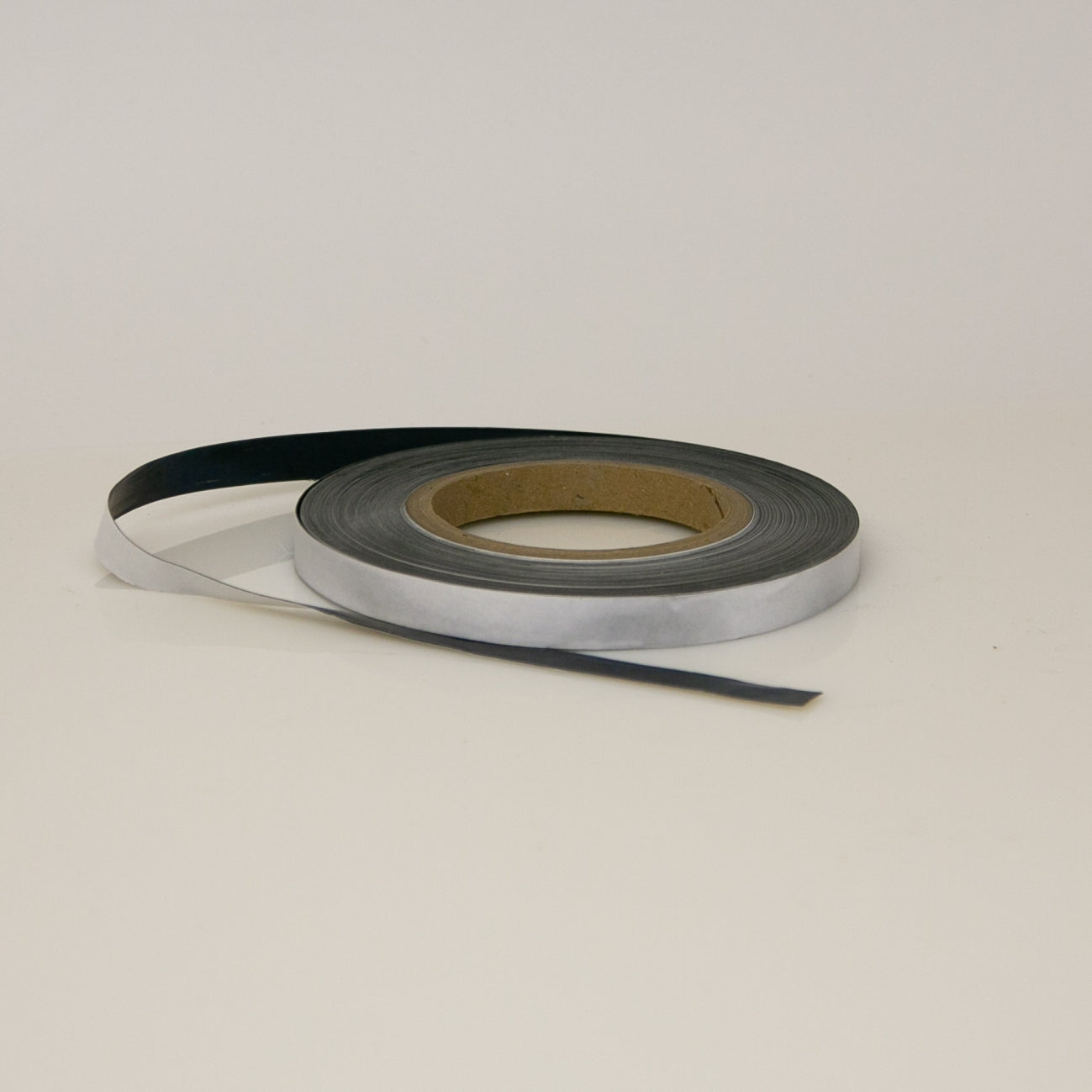

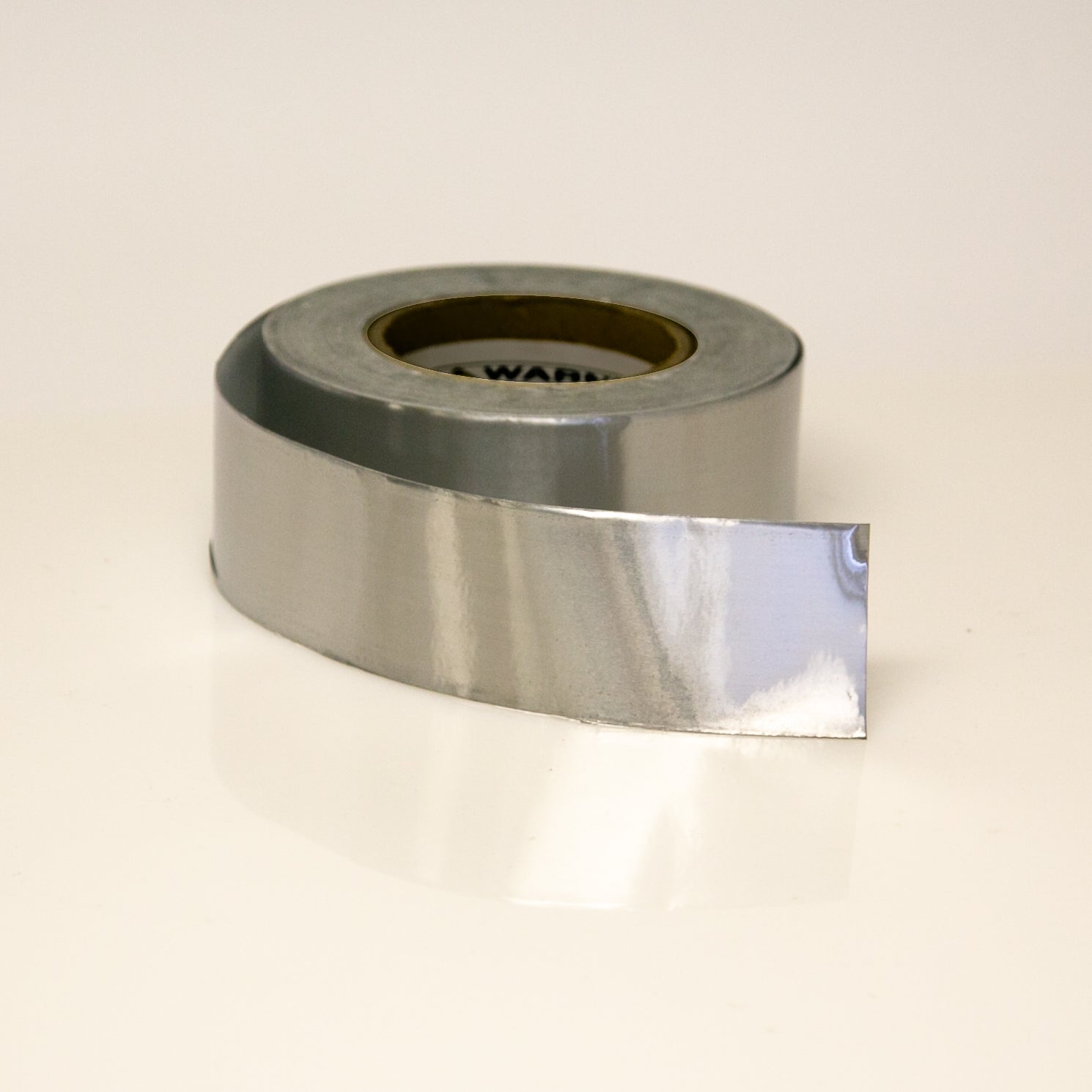

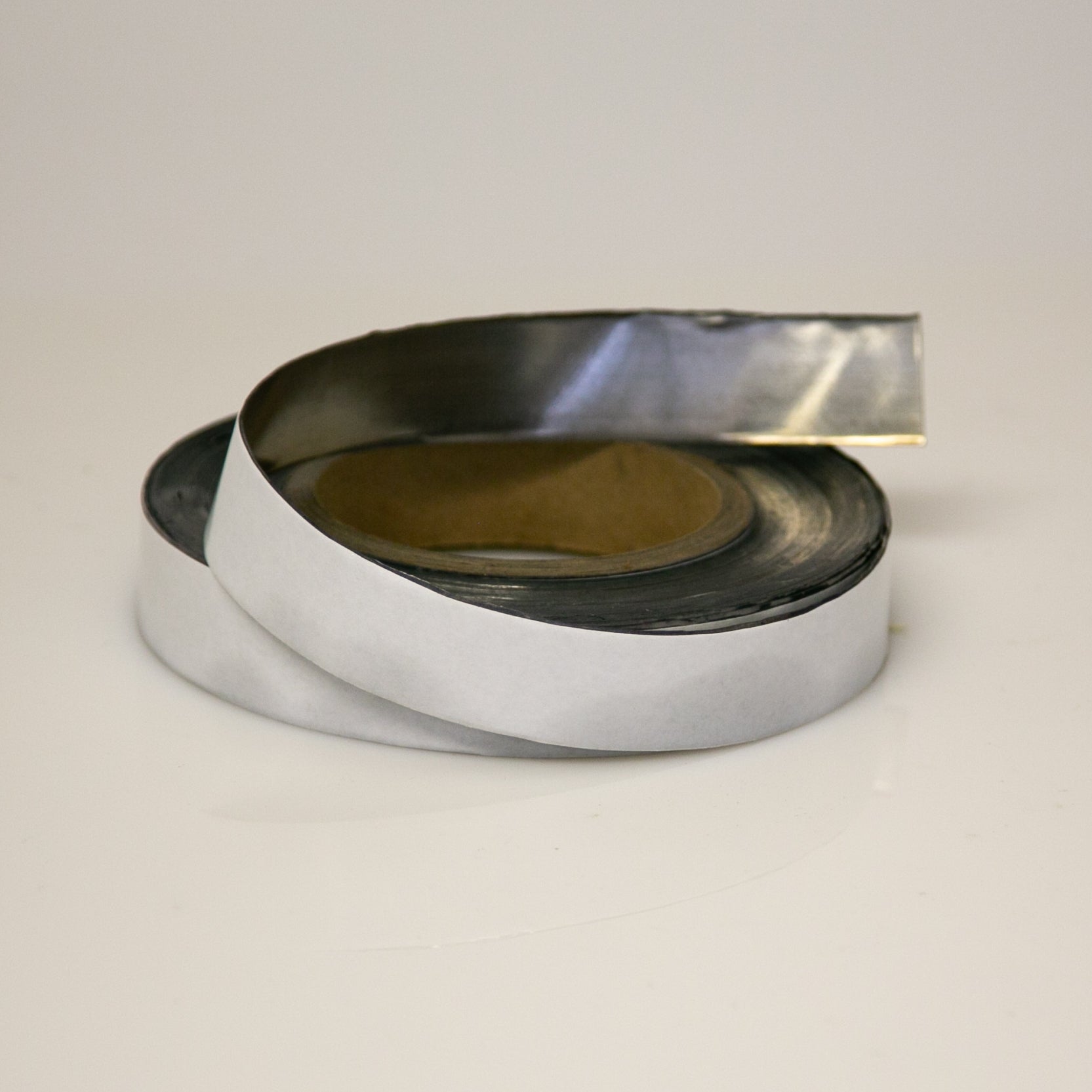

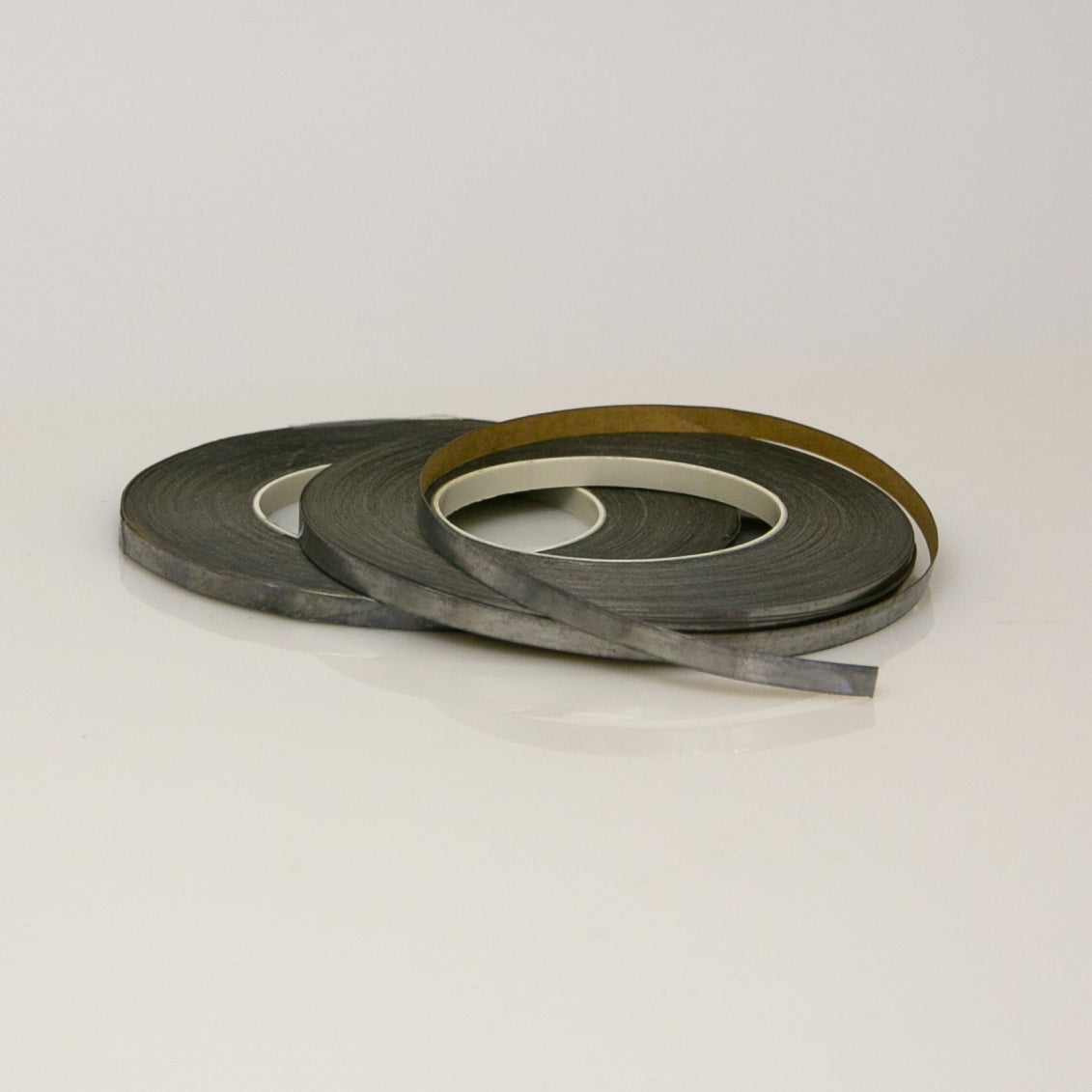

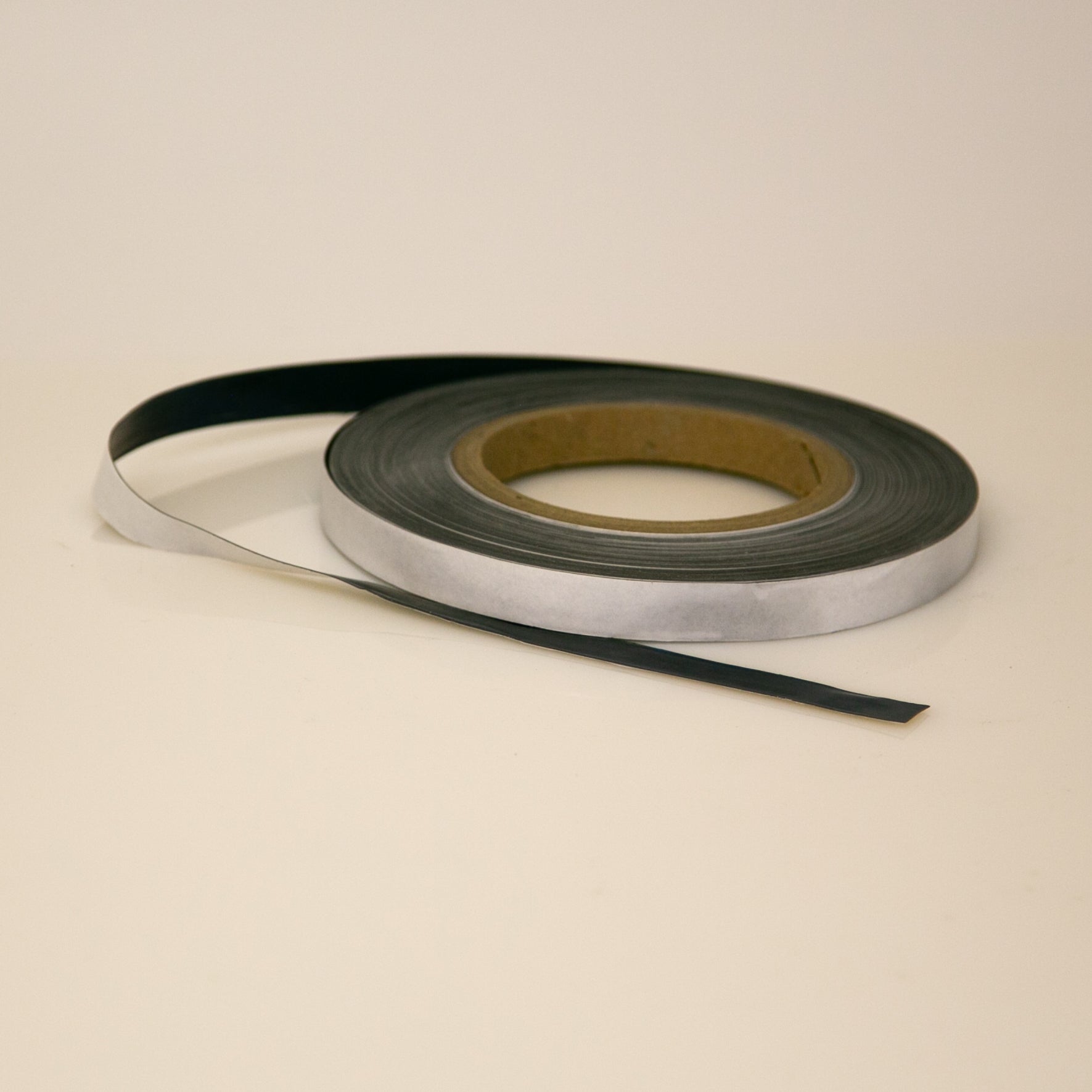

Product Model: NADCO® Lead Foil Tape LF20.
Material: Pure lead foil.
Thickness: 5-mil (125-micron).
Adhesive: Aggressive solvent-resistant acrylic adhesive.
Liner/Backing: Hand-tearable.
Compliance:
LFNA (Non-adhesive version): Mercury-free, RoHS compliant (2011/65/EU).
Shelf Life: Two years or more from date of shipment.
Format Options:
Widths: Ultra-narrow (1/8", 1/4"), Narrow strips, Wide-format rolls.
Shapes: Pre-cut geometric shapes (dots, squares), custom die-cut stencils.
Gauges: Variable thickness available (thicker gauges for high-energy radiation).

Product Details

Core Benefits:
Malleability: Easily shaped to intricate designs and sharp contours without tearing.
High Density: Provides significant mass for weighting/balancing.
Radiation Attenuation: Shields against X-rays and Gamma radiation.
Adhesion: Strong bond to diverse substrates (including low surface energy/textured) with good "wetting out."
Resistance: Resists common solvents and elevated temperatures (e.g., electroplating).
Applications:
Sports Equipment: Precision weighting/balancing of golf clubs and rackets.
Vibration Dampening: Reducing acoustic noise in machinery.
Radiation Shielding: Masking in X-ray rooms/scanners (Medical/Research); NDT testing.
Industrial Processing: Electroplating masking (chemical resistance).
Decorative: Simulated leaded glass windows.
Benefits by Size/Format:
Small/Narrow: Precision increments for swing weight adjustments; mimicking glass mullions.
Wide/Thick: Minimizes seams for radiation barriers; maximum density for high-energy environments.
Die-Cut: Intricate patterns for electroplating.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Lead

SKU: LF.25

$65.00

Shipping calculated at checkout.

Hurry up, only 4 items left in stock.

Size: 1/4" X 100'

1/4" X 100' 1/2" X 100' 3/4" X 100' 1" X 100' 2" X 100' 3" X 100'

Free shipping with orders over $200

NADCO® Lead Foil Tape LF20 is a 5-mil pure lead foil product featuring an aggressive, solvent-resistant acrylic adhesive and a convenient hand-tearable design. A non-adhesive, RoHS-compliant version (LFNA) is also available. Known for its extreme malleability, high density, and strong adhesion, this tape is highly resistant to solvents and elevated temperatures. It serves diverse applications, including precision weighting for sports equipment, vibration dampening, electroplating masking, decorative glass, and X-ray or Gamma radiation shielding. Offered in multiple widths, thicknesses, and custom die-cut shapes, the LF20 tape provides tailored solutions for both intricate, highly detailed work and completely seam-free industrial radiation barriers.

Specifications

Product Model: NADCO® Lead Foil Tape LF20.
Material: Pure lead foil.
Thickness: 5-mil (125-micron).
Adhesive: Aggressive solvent-resistant acrylic adhesive.
Liner/Backing: Hand-tearable.
Compliance:
LFNA (Non-adhesive version): Mercury-free, RoHS compliant (2011/65/EU).
Shelf Life: Two years or more from date of shipment.
Format Options:
Widths: Ultra-narrow (1/8", 1/4"), Narrow strips, Wide-format rolls.
Shapes: Pre-cut geometric shapes (dots, squares), custom die-cut stencils.
Gauges: Variable thickness available (thicker gauges for high-energy radiation).

Product Details

Core Benefits:
Malleability: Easily shaped to intricate designs and sharp contours without tearing.
High Density: Provides significant mass for weighting/balancing.
Radiation Attenuation: Shields against X-rays and Gamma radiation.
Adhesion: Strong bond to diverse substrates (including low surface energy/textured) with good "wetting out."
Resistance: Resists common solvents and elevated temperatures (e.g., electroplating).
Applications:
Sports Equipment: Precision weighting/balancing of golf clubs and rackets.
Vibration Dampening: Reducing acoustic noise in machinery.
Radiation Shielding: Masking in X-ray rooms/scanners (Medical/Research); NDT testing.
Industrial Processing: Electroplating masking (chemical resistance).
Decorative: Simulated leaded glass windows.
Benefits by Size/Format:
Small/Narrow: Precision increments for swing weight adjustments; mimicking glass mullions.
Wide/Thick: Minimizes seams for radiation barriers; maximum density for high-energy environments.
Die-Cut: Intricate patterns for electroplating.
