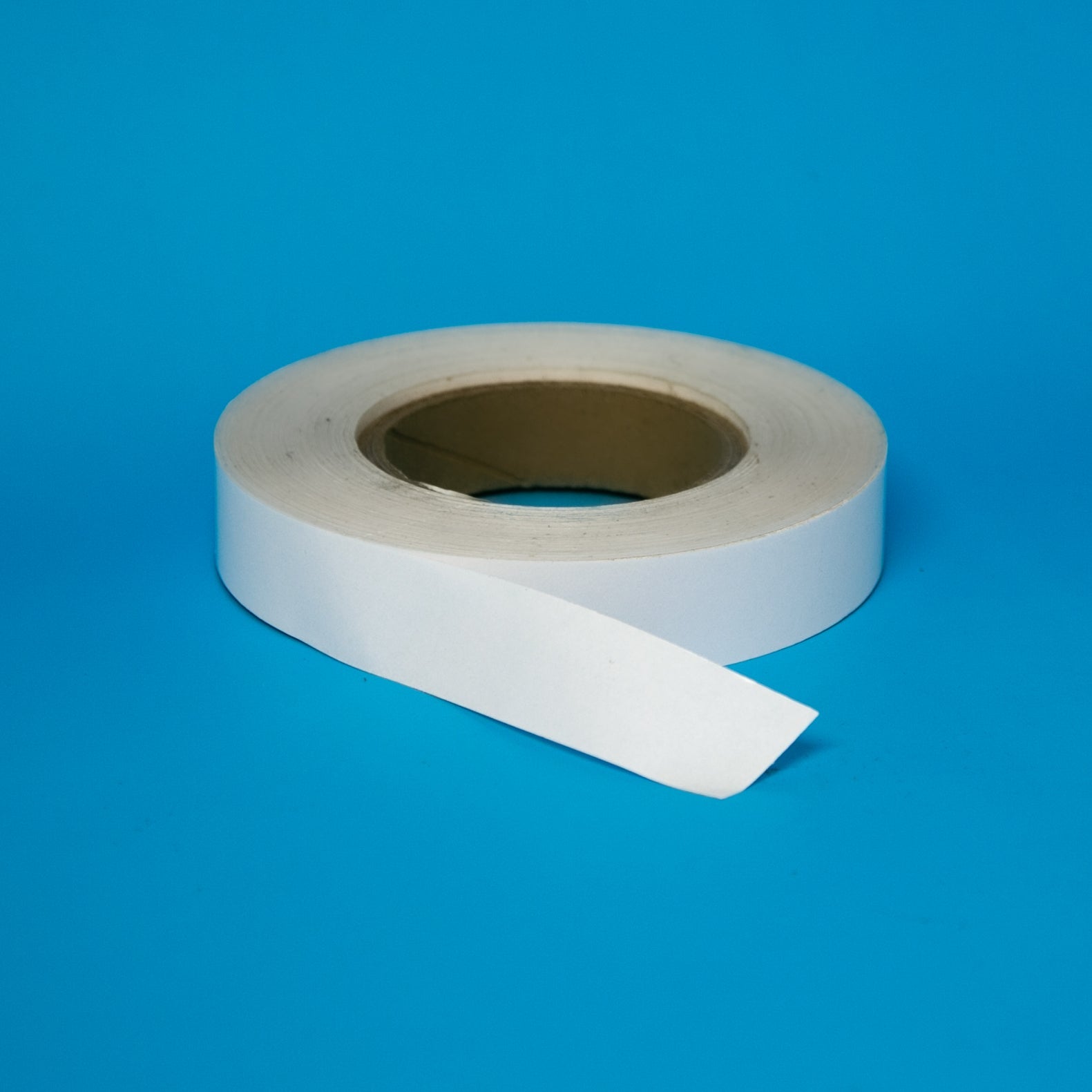

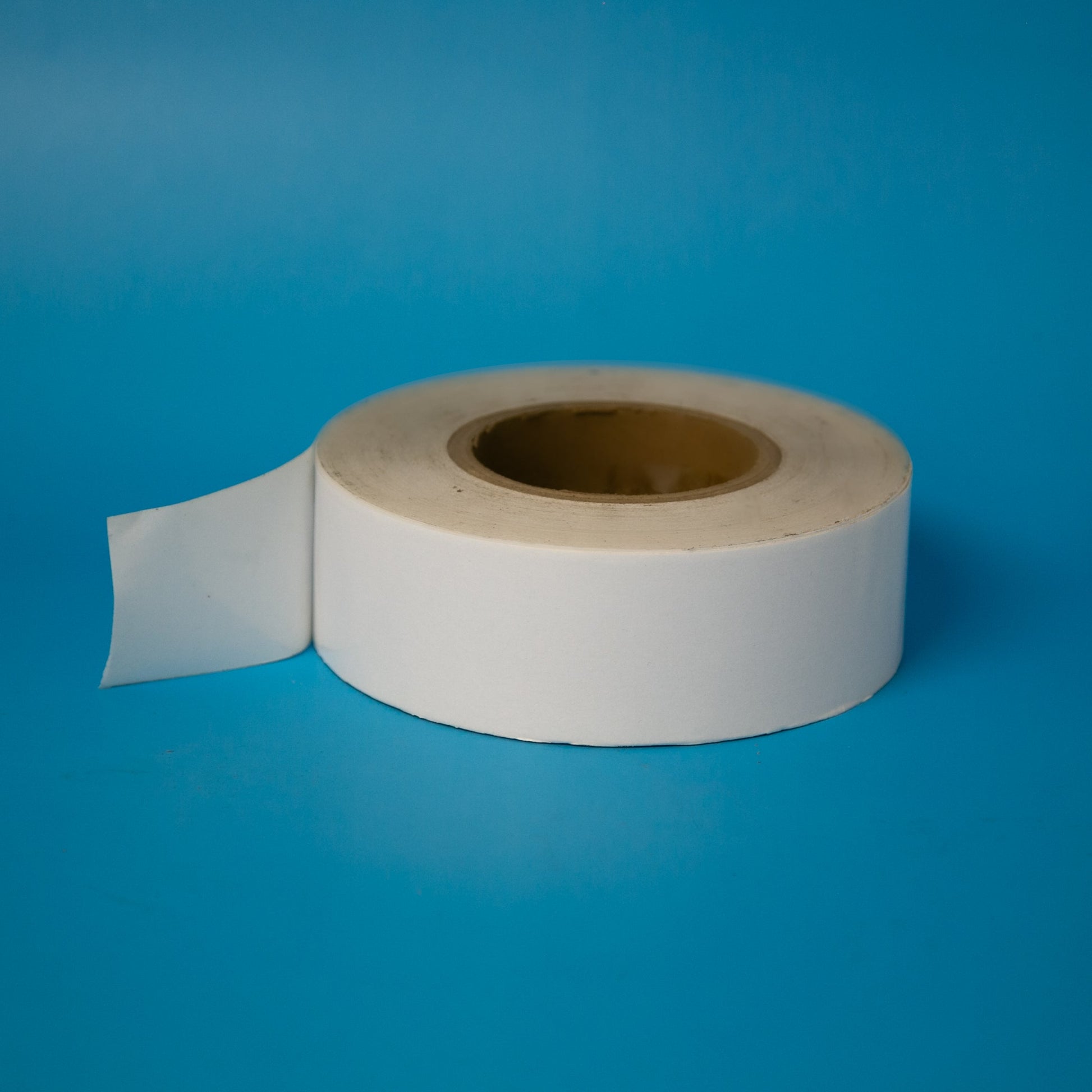

Double Coated Tape - NADCO Tapes & Labels, Inc.

Specifications

Adhesive Type: Non-sensitizing acrylic (Air and Liner sides)

Carrier Material: 0.5-mil Polyester (PET) film

Liner Type: 76-pound polycoated bleached kraft

Sterilization Compatibility: Ethylene Oxide (EtO) and Gamma radiation

Peel Adhesion (Air Side): 130 oz/in

Peel Adhesion (Liner Side): 145 oz/in

Maximum Continuous Operating Temperature: 160°F (71°C)

Maximum Intermittent Temperature: 180°F (82°C)

Product Details

Overview: High-performance, double-coated tape engineered specifically for medical applications. It is formulated with a biocompatible, M109 non-sensitizing acrylic adhesive on both the air and liner sides, safely interacting with human skin and reducing the risk of dermal irritation. The specialized adhesive system is chemically stable and maintains its structural and adhesive integrity when exposed to rigorous medical-grade sterilization protocols, including Ethylene Oxide (EtO) and gamma radiation.

Physical Characteristics: The tape features a thin polyester (PET) film carrier that provides critical internal strength to prevent stretching or tearing during automated die-cutting, while
remaining flexible enough to conform to irregular surface geometries. It is equipped with a premium, heavy-duty polycoated bleached kraft liner that provides outstanding moisture resistance, strict dimensional stability, and an exceptionally low coefficient of friction (COF) for smooth manual assembly.

Applications:

Medical Device Assembly: Permanently bonding internal components, structural housings, and diagnostic sensors within modern medical equipment, clinical monitors, and handheld tools.

Wearable Device Attachment: Safely and securely attaching lightweight, wearable medical monitoring devices or patches directly to patients.

Sterile Instrument Fabrication: Joining delicate sub-assemblies in single-use or reusable surgical instruments prior to EtO or gamma sterilization.

Custom Die-Cut Components: Providing a stable, rigid liner and supportive carrier for converters to accurately punch out complex custom adhesive shapes without edge-ooze.

Manual Assembly Line Production: Facilitating rapid, complication-free peeling and hand application on fast-paced medical manufacturing floors.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Double Coated Tape

SKU: 3604-1

$14.95

Shipping calculated at checkout.

Hurry up, only 3 items left in stock.

Size: 3604-1

3604-1 3604-2

Free shipping with orders over $200

Double-coated tape is a high-performance, biocompatible bonding solution engineered specifically for modern medical device manufacturing. Formulated with a non-sensitizing acrylic adhesive, it safely adheres to human skin and a wide variety of medical-grade substrates. It features exceptional holding power and remains completely stable during rigorous EtO and gamma radiation sterilization protocols. A thin 0.5-mil polyester carrier provides vital structural integrity for precise custom die-cutting while conforming effortlessly to irregular geometries. Supported by a highly moisture-resistant, 76-pound polycoated kraft liner with remarkably low friction, this versatile tape ensures rapid, complication-free manual assembly for wearable devices and sterile surgical instruments.
