Facestock: 3.2 mil durable white vinyl (water and tear-resistant).

Adhesive: Outdoor permanent, pressure-sensitive acrylic adhesive.

Liner: 3.4 mil clay-coated, lay-flat liner.

Crash Test Target Applications

Best for areas prone to high deformation (bumpers, fenders) and adhering to difficult surfaces like chrome, auto glass, and painted plastic. Built for long-duration outdoor testing where targets are exposed to weather before the crash.

Target Optimization by Size (Width)

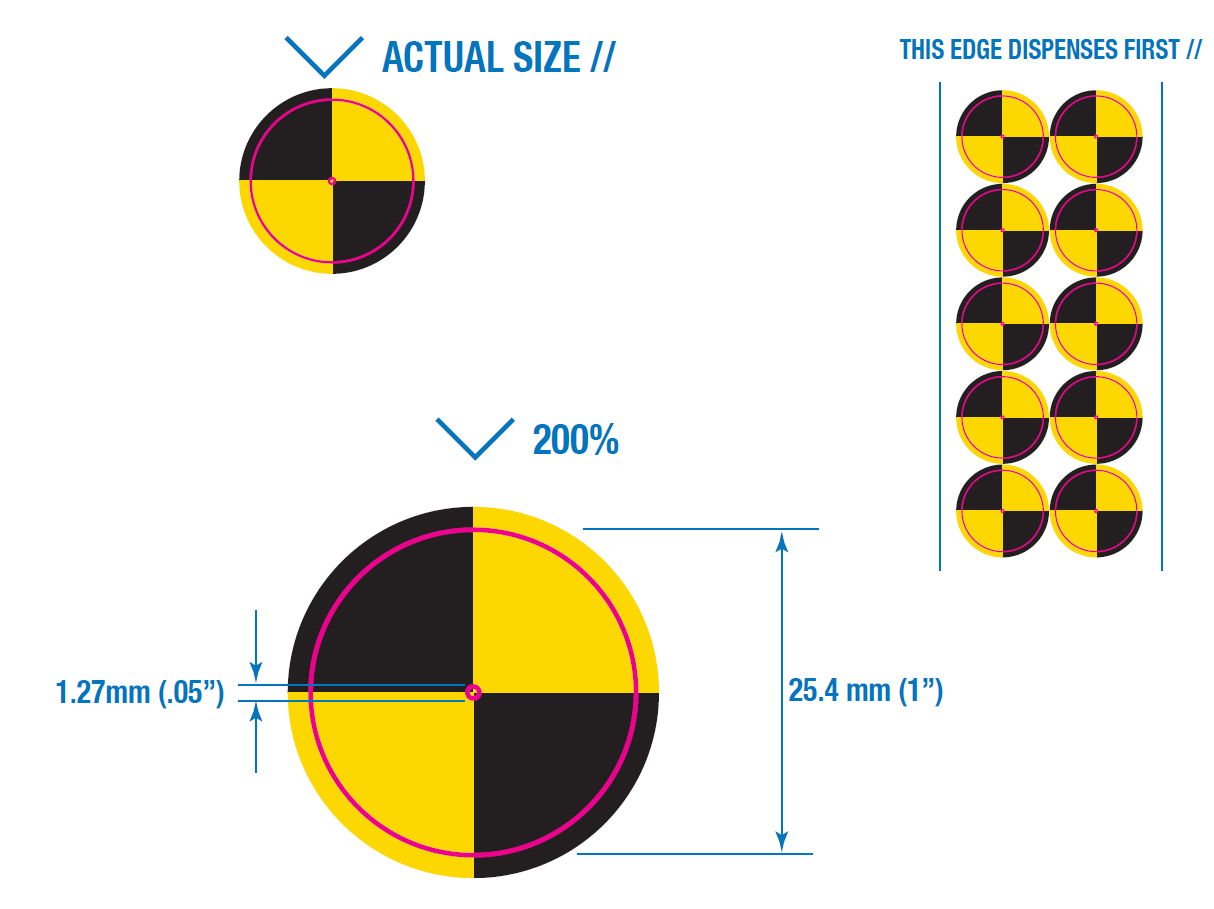

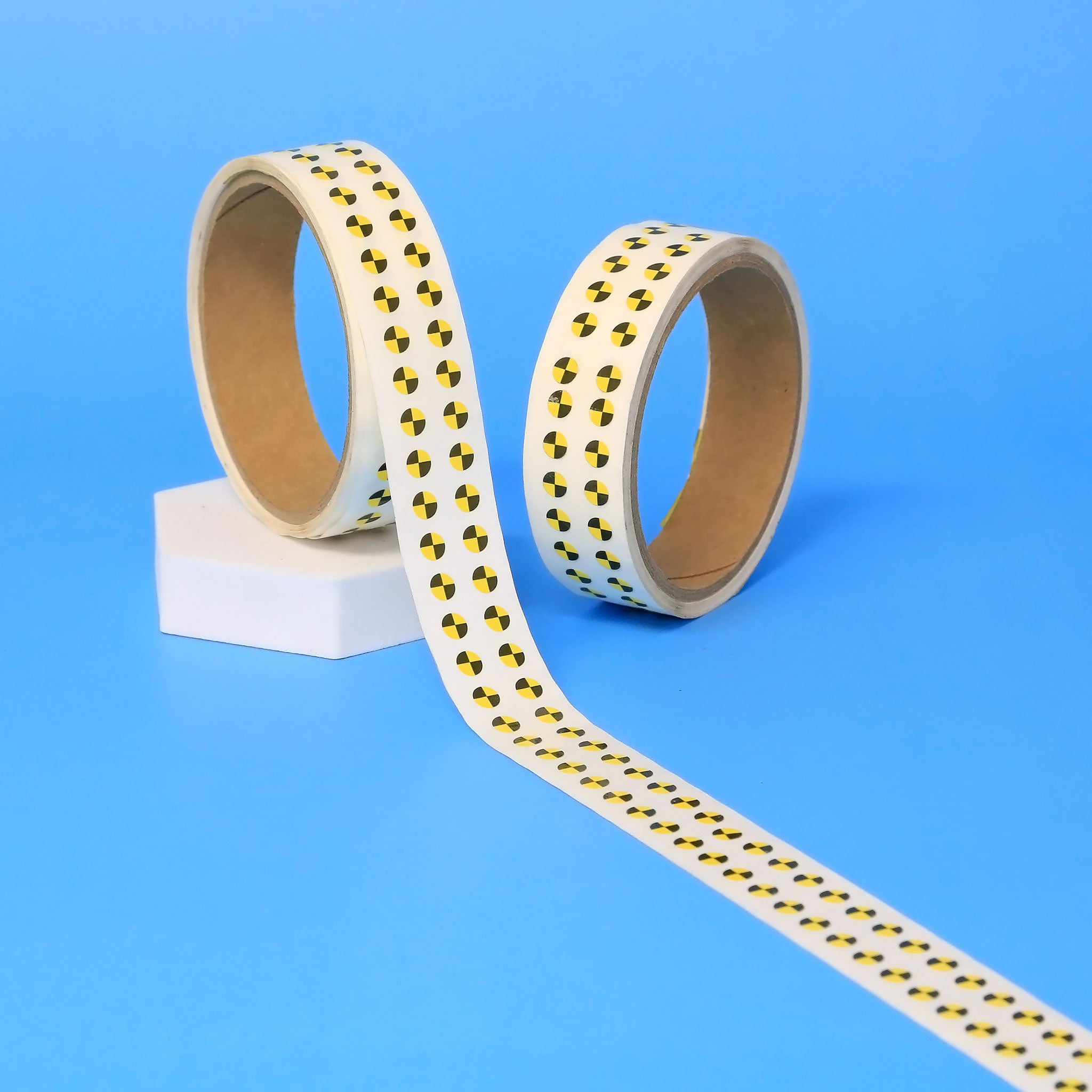

Narrow (High Precision): Used for Digital Image Correlation (DIC), small dots, or thin lines on internal components and welds.

Medium (General Tracking): Standard checkerboard squares for measuring occupant movement or exterior panel tracking.

Wide (Long Distance): Large reference stripes on barriers or rooflines for measuring gross vehicle movement (pitch, roll, yaw).

Target Optimization by Color & Shape

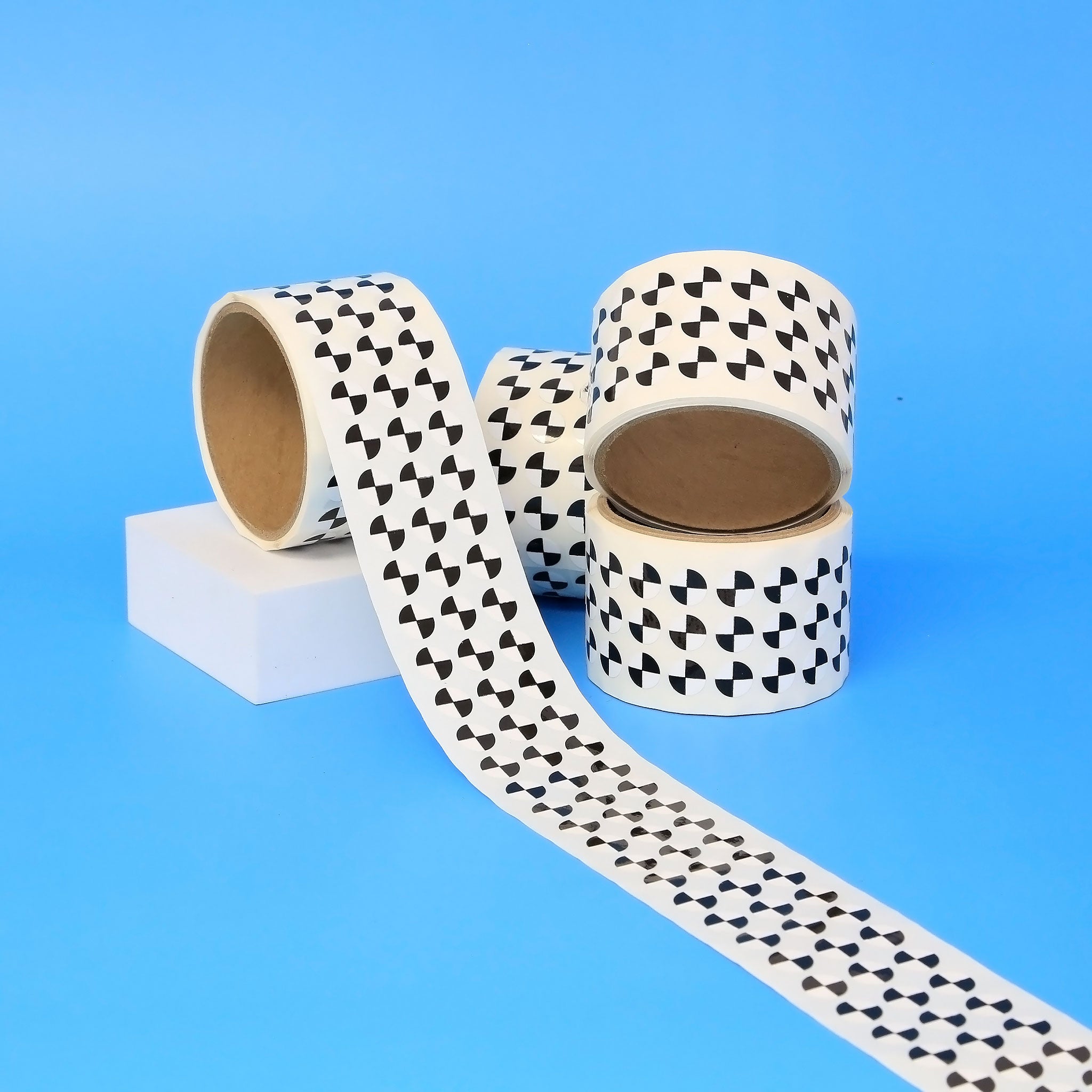

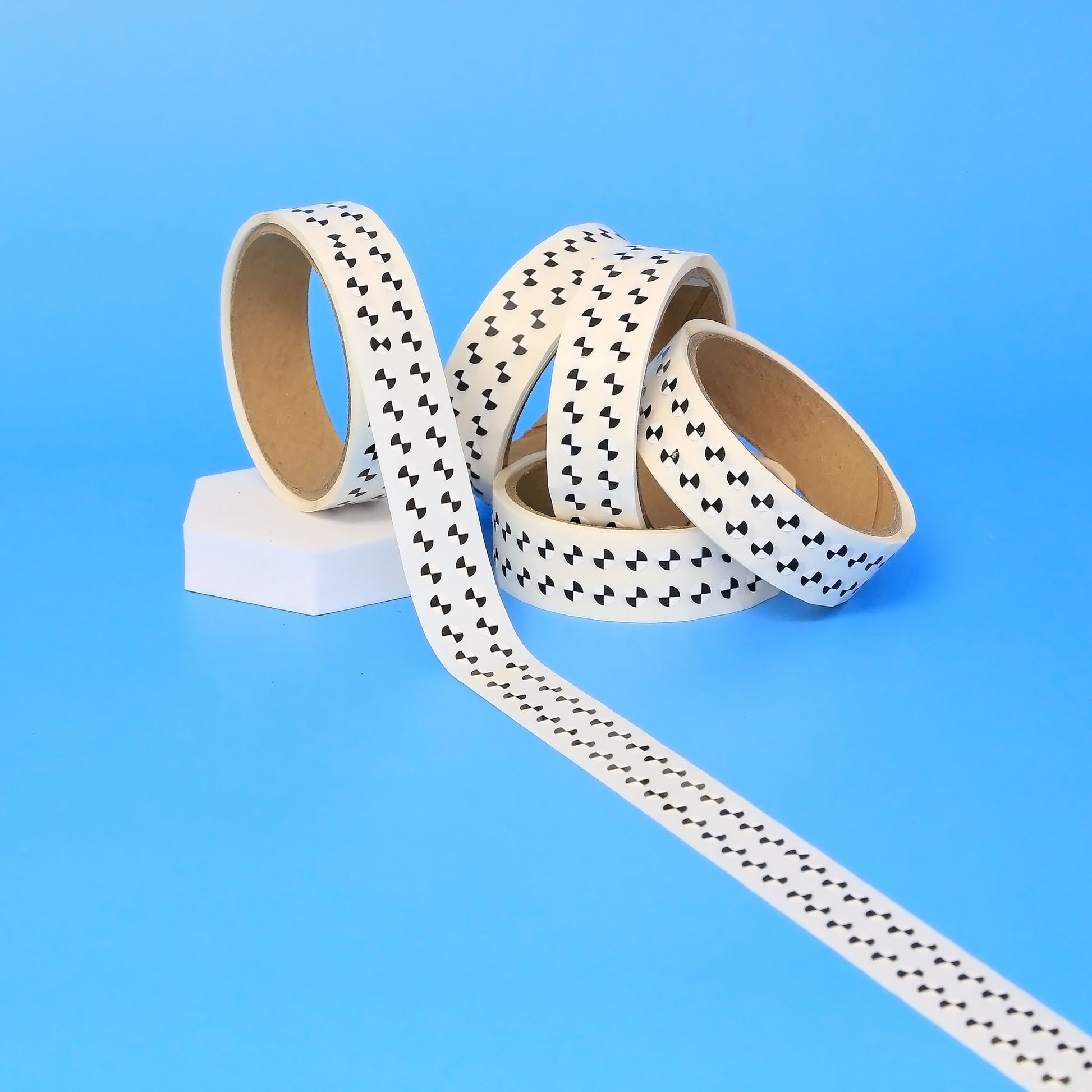

High-Contrast (Black/White): Essential for software algorithms to distinguish the target from the background.

Non-Reflective/Low-Gloss: Critical for preventing flash glare from high-speed cameras (VCC is the superior choice here).

Vibrant Colors: Used to differentiate between multiple test components or data streams (e.g., yellow for primary systems, blue for secondary).

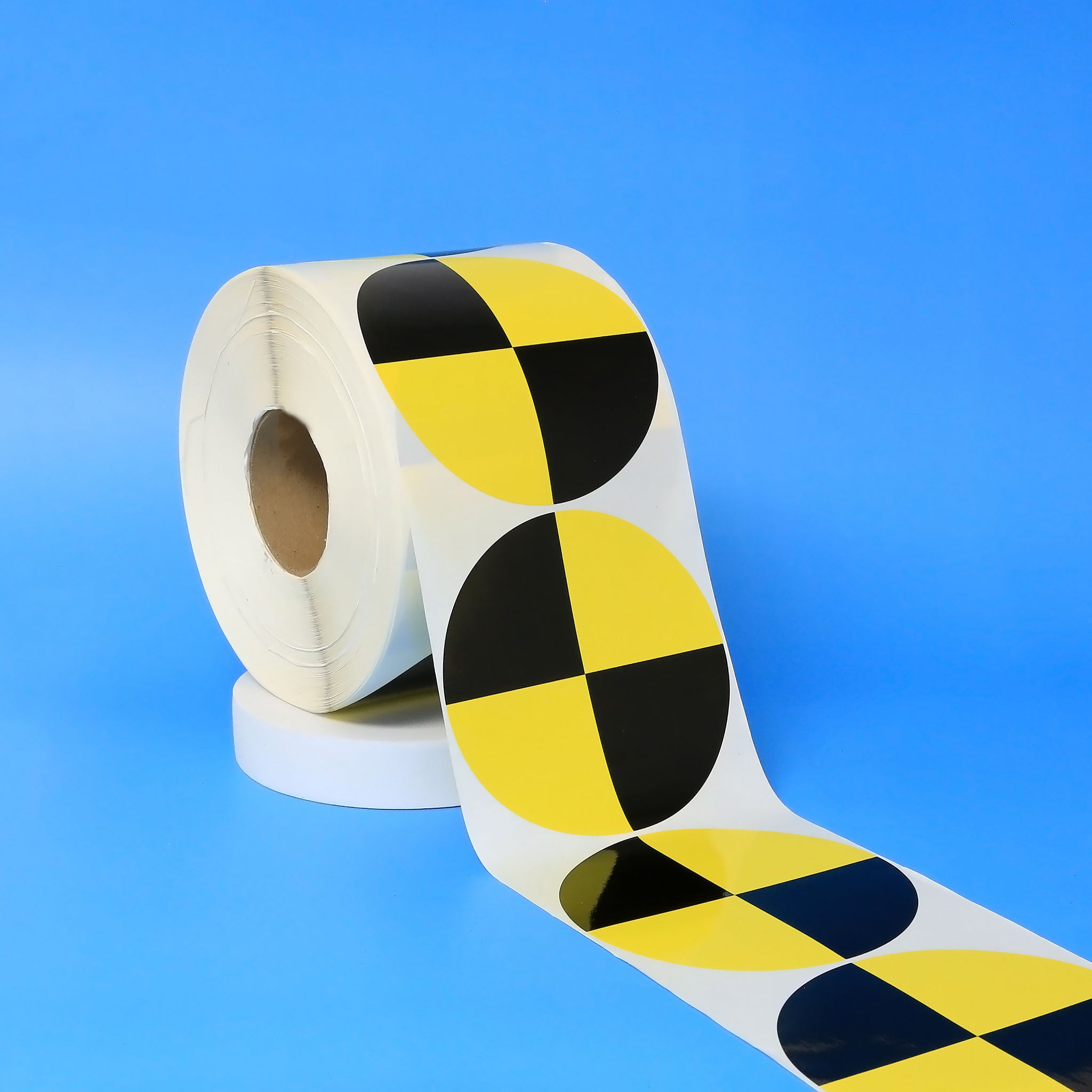

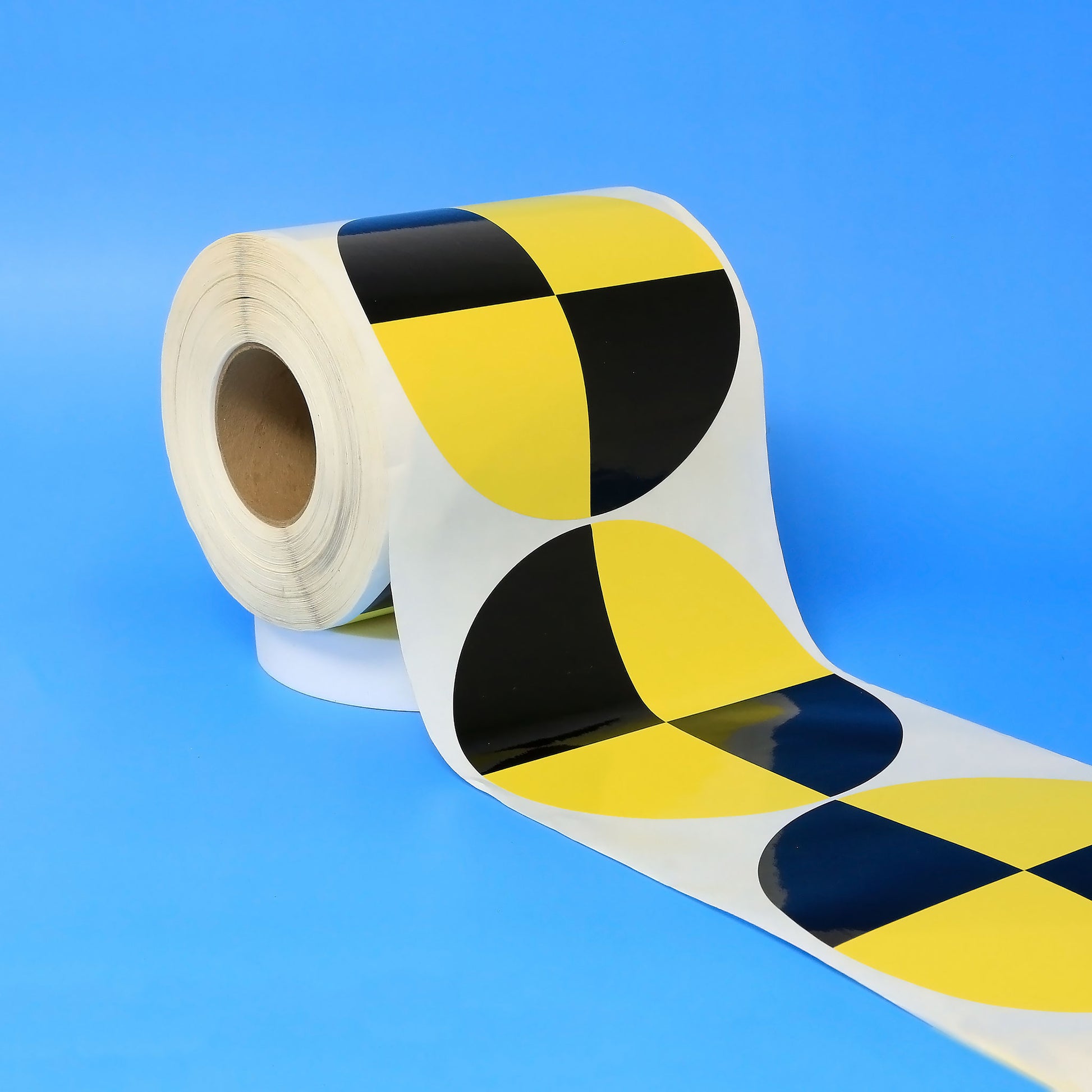

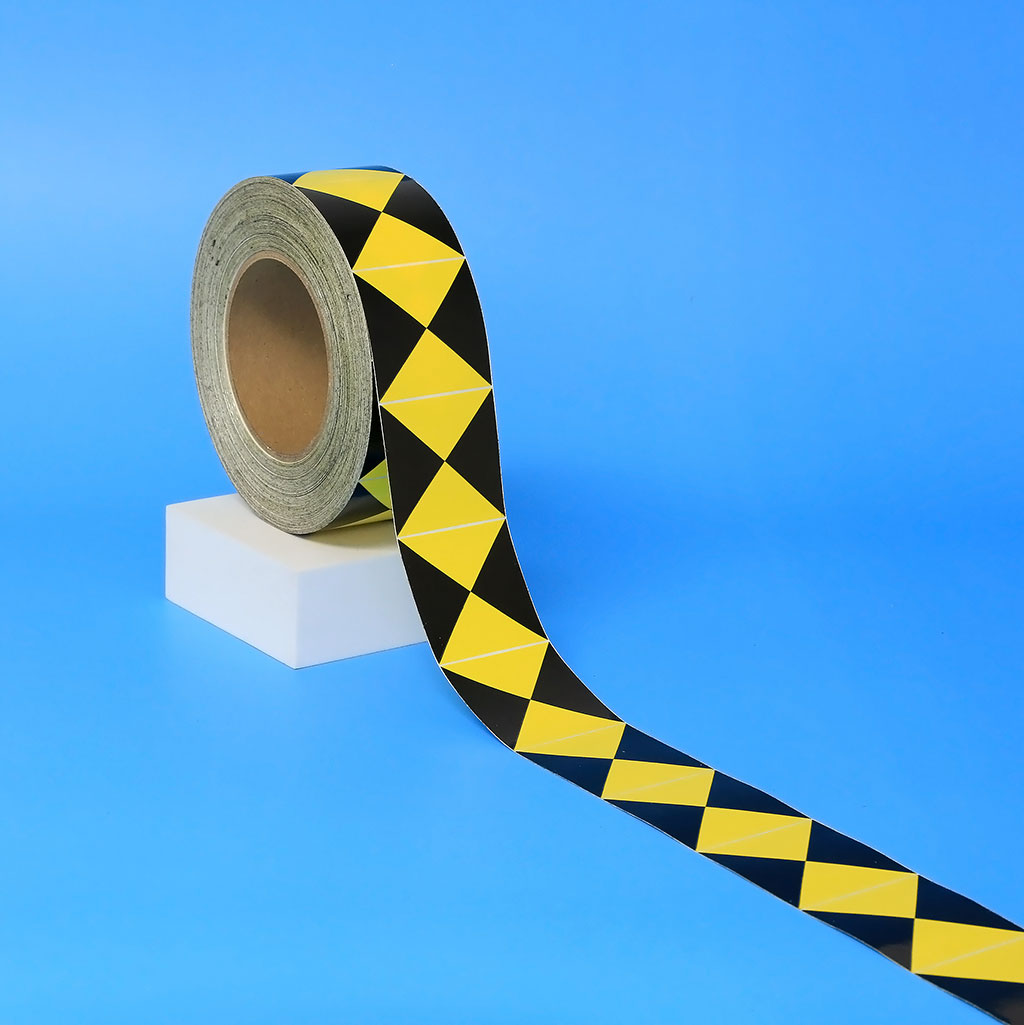

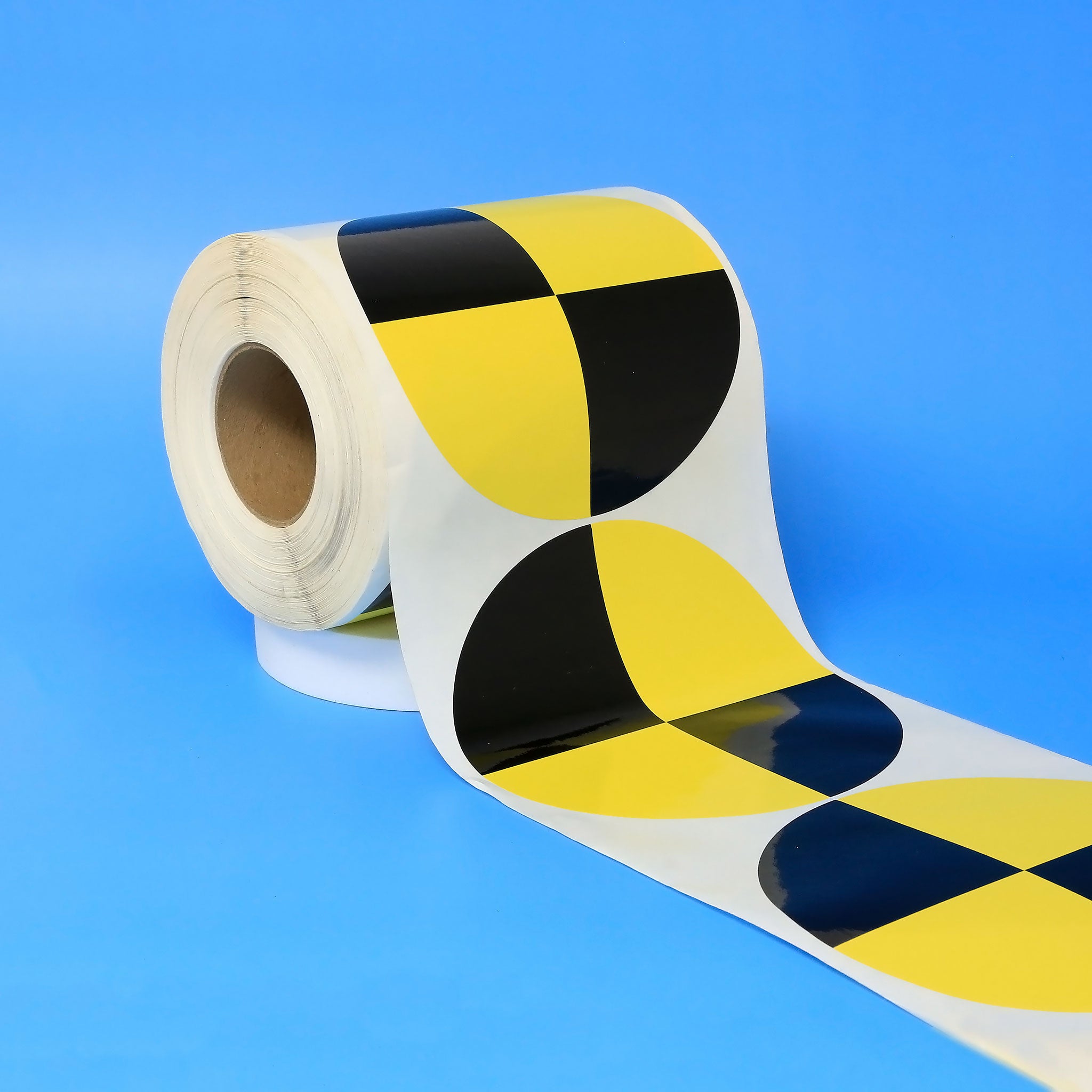

Shapes: Custom die-cut shapes (e.g., rounds) prevent lifting on curved surfaces; specific shapes (e.g., diamonds) are used for regulatory compliance.
